Indicador binario (CIR14037S)

Written by: Newton C. Braga
Category: Banco de circuitos

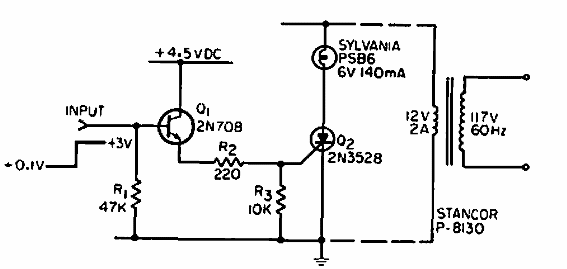

     Este circuito se obtuvo de la documentación antigua, pero se puede usar como un shield en una aplicación moderna. El SCR puede ser un de la serie 106 y un transistor de propósito general.



Indicador binario
Indicador binario
