Detector sincronizado (CIR14007S)

Written by: Newton C. Braga
Category: Banco de circuitos



    Este circuito se obtuvo de una documentación estadounidense de 1976. El circuito tiene un rango dinámico de 100 kHz. Los FET pueden ser reemplazados por equivalentes actuales.

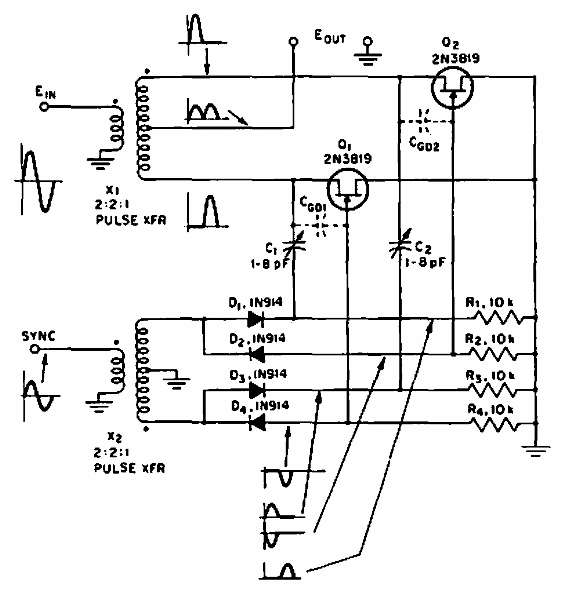

Detector sincronizado
Detector sincronizado
