Fuente de corriente constante (CIR13964S)

Written by: Newton C. Braga
Category: Banco de circuitos

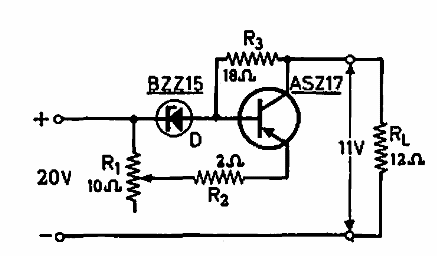

    Este circuito de 1 A se encontró en una documentación de Philips de 1966. El transistor es de la época, pero se puede usar un transistor moderno de potencia equivalente.



Fuente de corriente constante
Fuente de corriente constante
