Convertidor 28 a 170 V (CIR13913S)

Written by: Newton C. Braga
Category: Banco de circuitos

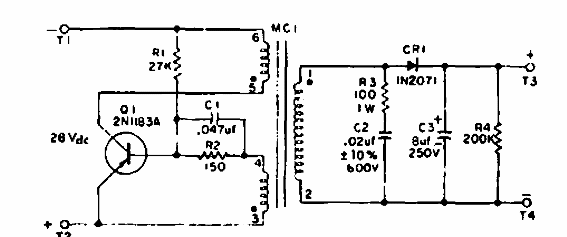

     Este circuito se obtuvo de una documentación estadounidense de 1967. El circuito proporciona una corriente de salida de 30 mA para excitar tubos indicadores Nixie estándar en ese momento.



Convertidor 28 a 170 V
Convertidor 28 a 170 V
