Convertidor de 12 a 35 V (CIR13911S)

Written by: Newton C. Braga
Category: Banco de circuitos



    Este circuito es de una Electronic Design de 1968. El circuito utiliza transistores de período que pueden reemplazarse con equivalentes modernos. Se pueden usar más pasos para aumentar la tensión.

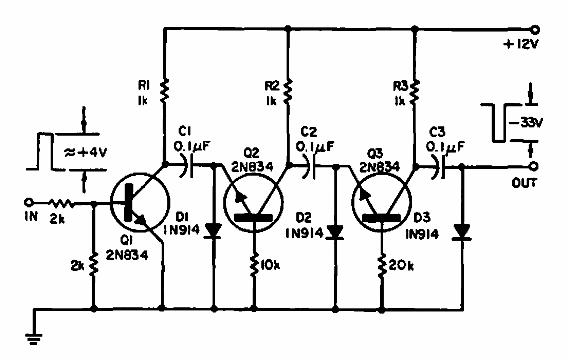

Convertidor de 12 a 35 V
Convertidor de 12 a 35 V
