Monitor de tensión de batería (CIR13419S)

Written by: Newton C. Braga
Category: Banco de circuitos

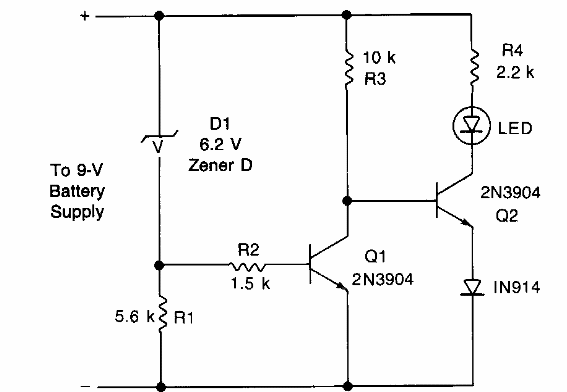

    Este circuito es de una documentación estadounidense de la década de 1980. El circuito indica cuándo la tensión de una batería de 9 V cae por debajo de 7 V. Los transistores pueden ser el BC548.



Monitor de tensión de batería
Monitor de tensión de batería
