Sensor de corriente y monitor de fusibles (CIR12877S)

Written by: Newton C. Braga
Category: Banco de circuitos

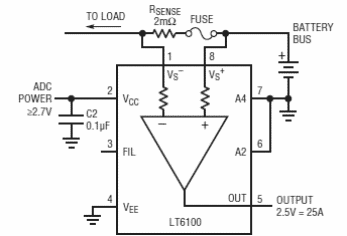

     Este circuito es de una nota de aplicación de Linear Technology del LT6100 de 2005. El circuito proporciona una salida basada en corriente y también indica cuando el fusible está abierto.
