Controlador de motor de corriente constante (CIR13027S)

Written by: Newton C. Braga
Category: Banco de circuitos

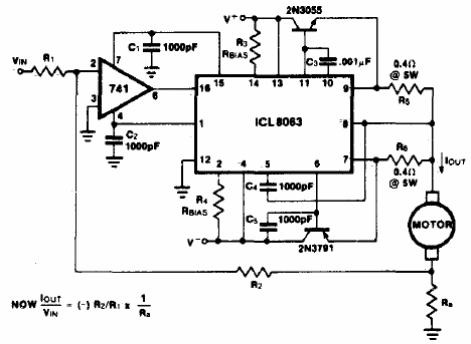

     En este circuito de los años 80 se utilizan componentes de la época. El circuito controla un motor de corriente continua y el transistor de potencia determina la corriente máxima de ese motor.
