Freno de motor (CIR13028S)

Written by: Newton C. Braga
Category: Banco de circuitos

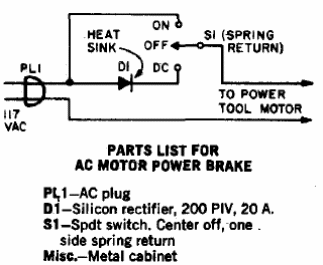

    El diodo de este circuito debe tener corriente según el motor. Lo que hace es aplicar semiciclos de alimentación del motor para reducir la velocidad del motor. Lo encontramos en la documentación de los 80.



Freno de motor
Freno de motor
