Prueba lógica TTL (CIR13168S)

Written by: Newton C. Braga
Category: Banco de circuitos

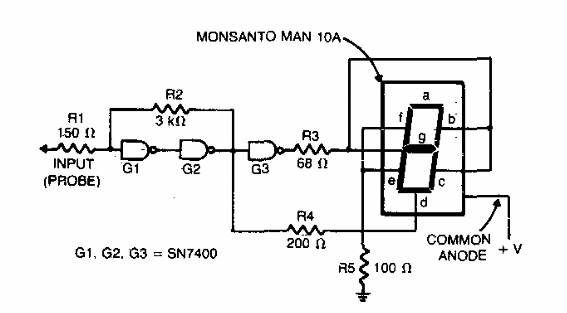

    Este circuito utiliza un display de 7 segmentos para indicar el nivel lógico de un circuito de prueba. La fuente de alimentación está hecha con 5 V que pueden provenir del propio circuito analizado.



Prueba lógica TTL
Prueba lógica TTL
