Driver de cable coaxial (CIR13194S)

Written by: Newton C. Braga
Category: Banco de circuitos

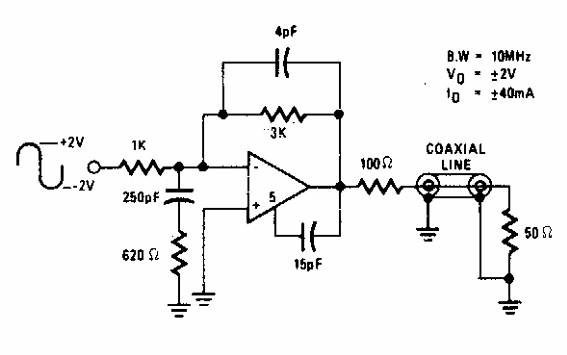

     El circuito integrado de este proyecto de los 80 no es común hoy en día. Este es el HA2530 que debe ser alimentado con fuente simétrica apropiada. El circuito es para una frecuencia de 10 MHz.



Driver de cable coaxial
Driver de cable coaxial
