aMultivibrador astable de 1 kHz (CIR12253S)

Written by: Newton C. Braga
Category: Banco de circuitos



      Este multivibrador astable oscila a una frecuencia de 1 kHz dada por los capacitores y los resistores base. La señal es rectangular y funciona con dos pilas pequeñas. Con el reemplazo de los capacitores, el circuito puede operar a otras frecuencias.



Multivibrador astable de 1 kHz

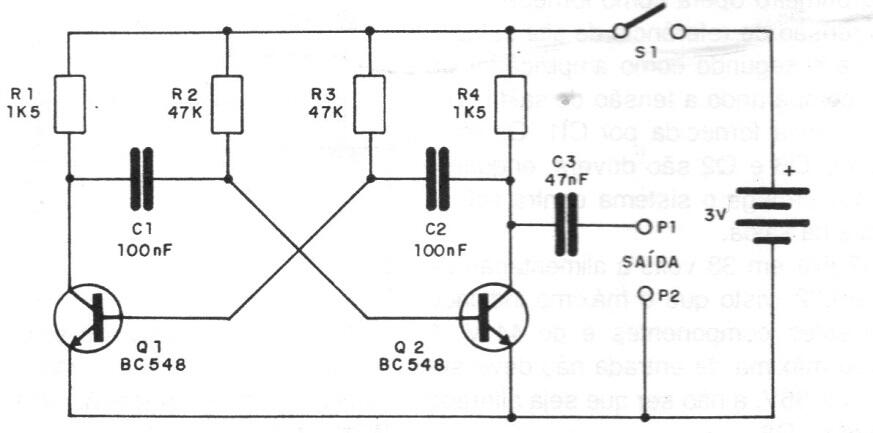

Multivibrador astable de 1 kHz | Haga click en la imagen para ampliar |
