Cargador Nicad (CIR12430S)

Written by: Newton C. Braga
Category: Banco de circuitos

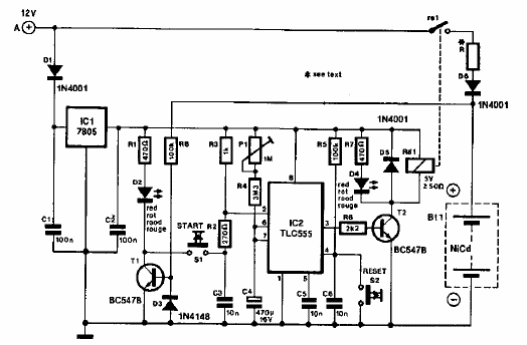

     Este sofisticado cargador de batería NiCad se encontró en un Elektor de la década de 1990. Los componentes utilizados siguen siendo comunes y deben ajustarse la tensióne de la batería a plena carga.



Cargador Nicad
Cargador Nicad
