Convertidor de 3 V a 5 V (CIR12465S)

Written by: Newton C. Braga
Category: Banco de circuitos



    Este circuito es de un manual de Maxim y puede usarse para alimentar shields con baterías. El circuito suministra corrientes de hasta 50 mA. El circuito integrado no es muy fácil de obtener hoy.

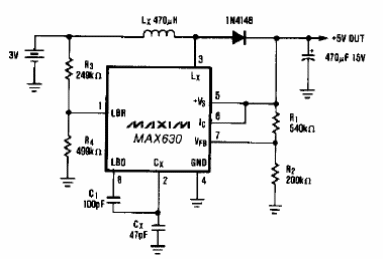

Convertidor de 3 V a 5 V
Convertidor de 3 V a 5 V
