Sumador sin ajuste (CIR12509S)

Written by: Newton C. Braga
Category: Banco de circuitos



     Este circuito sin ajuste se encontró en un antiguo manual de amplificadores operacionales. La configuración puede servir como referencia para proyectos actuales. La fuente de alimentación debe ser simétrica.

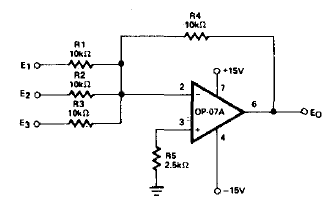

Sumador sin ajuste
Sumador sin ajuste
