Fuzz 4 (CIR12788S)

Written by: Newton C. Braga
Category: Banco de circuitos

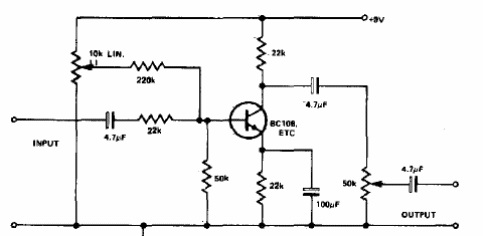

    Este distorsionador usa solo un transistor que puede ser el BC548. Los cables de entrada y salida de señal deben estar apantallados. La energía se suministra con una batería de 9V para minimizar cualquier problema de ruido.



Fuzz 4
Fuzz 4
