Fuente simple con dos diodos (CIR11622S

Written by: Newton C. Braga
Category: Banco de circuitos

)

     Esta es la configuración de fuente tradicional no regulada con rectificación de onda completa. Para corrientes de hasta 1 A, use diodos 1N4002. El capacitor puede tener valores de 470 uF a 10,000 uF, dependiendo del grado de filtración deseado.

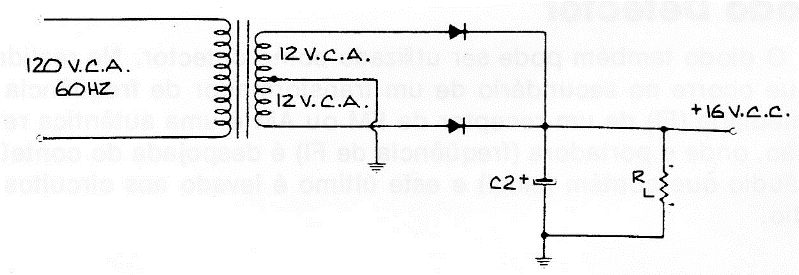

Fuente simple con dos diodos
Fuente simple con dos diodos | Haga click en la imagen para ampliar |
