Etapa amplificadora con FET (CIR11918S)

Written by: Newton C. Braga
Category: Banco de circuitos



     Este buen paso de ganancia se obtuvo de una publicación estadounidense de los años 80. El circuito puede ser alimentado por tensiones de 3 a 9 V y el FET puede ser de casi cualquier tipo. Los valores de los componentes están al lado del diagrama.

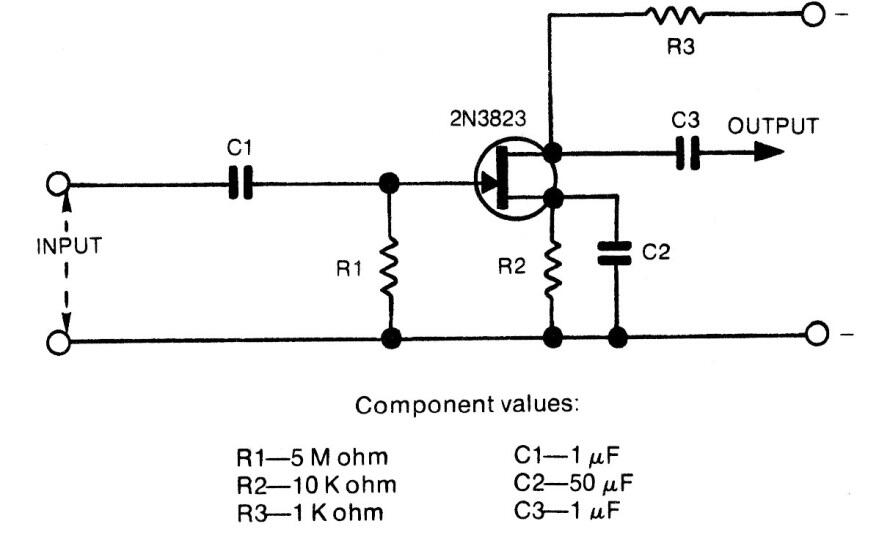

Etapa amplificadora con FET
Etapa amplificadora con FET | Haga click en la imagen para ampliar |
