Detector de FM (CIR11226S)

Written by: Newton C. Braga
Category: Banco de circuitos

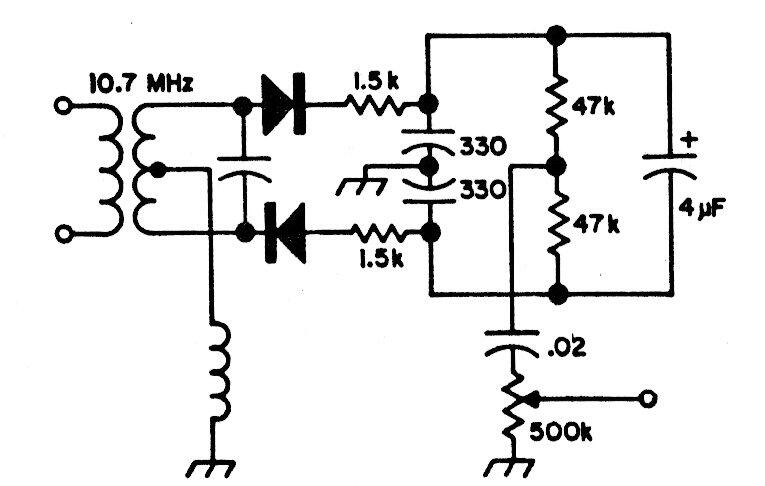

    Esta es una configuración que se encuentra en los receptores de FM tradicionales con 10.7 MHz FI. El circuito utiliza dos diodos y tiene su salida a la etapa del amplificador de audio. El circuito es de una documentación de los años 80.



Detector de FM
Detector de FM | Haga click en la imagen para ampliar |
