aFuente variable con voltímetro digital (CIR11397S)

Written by: Newton C. Braga
Category: Banco de circuitos



    No necesitamos enfatizar la importancia de las fuentes de alimentación en el laboratorio de desarrollo del proyecto o en el banco de reparación. La fuente presentada es la más tradicional en tres aspectos. La configuración de tensión es bien conocida, haciendo uso de regulación de tensión y otros componentes bastante comunes en nuestro mercado. El sistema de protección es clásico, del tipo que dispara un relé en caso de cortocircuito, interrumpiendo el suministro de carga. Finalmente, en la pantalla de tensión digital tenemos uno de los circuitos más tradicionales de esta función que es Intersil ICL7107. Por lo tanto, los bloques de esta fuente también se pueden usar en otras aplicaciones. Para los lectores que quieran saber más sobre las fuentes, recomendamos las fuentes de alimentación de Newton C. Braga, donde tenemos variaciones en esta configuración y otras igualmente interesantes.



Fuente variable con voltímetro digital

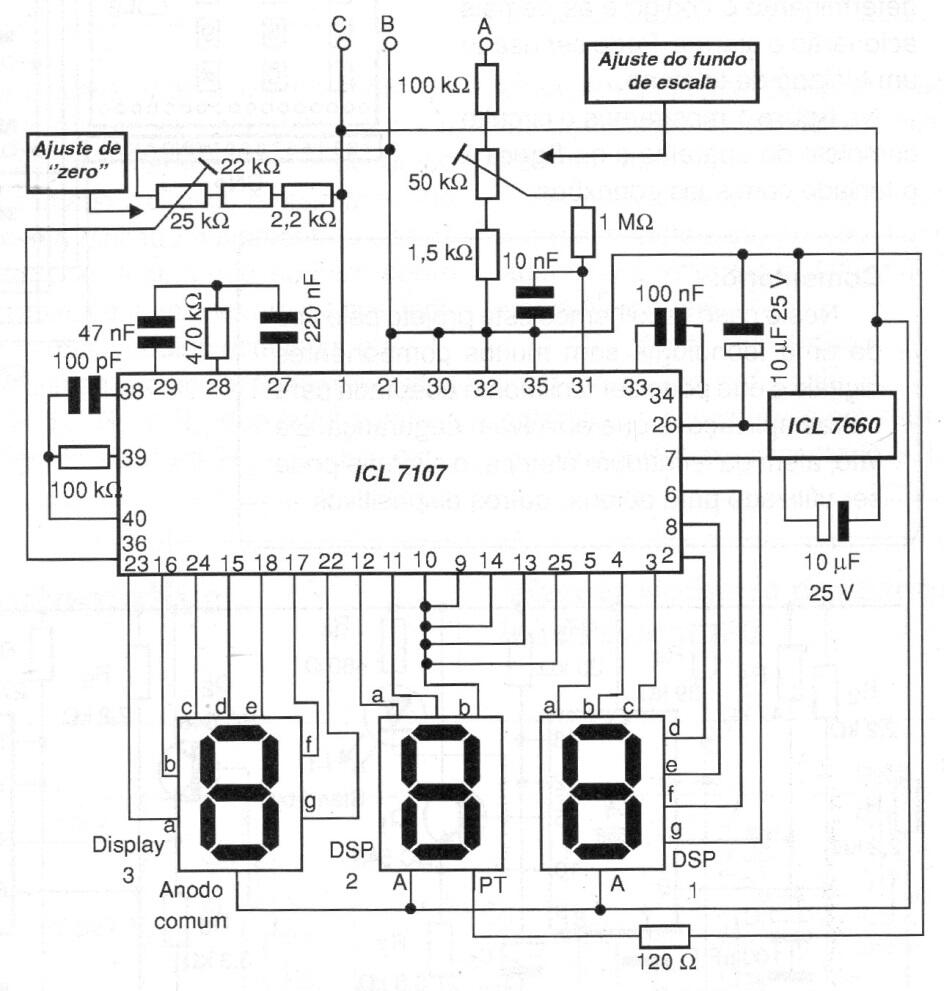

Fuente variable con voltímetro digital | Haga click en la imagen para ampliar |
