Indicador de Tensión de Red (CIR10603S)

Written by: Newton C. Braga
Category: Banco de circuitos

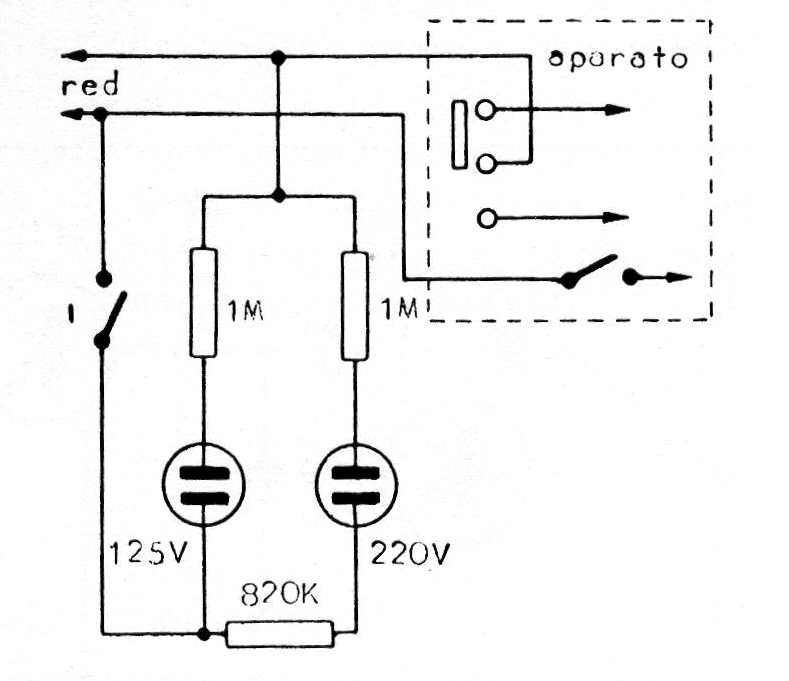

Este circuito simple hace uso de lámparas de neón para indicar la tensión de una red de energía. Las lámparas son de neón común y el circuito indica si la tensión es 110 V o 220 V.



Indicador de Tensión de Red
Indicador de Tensión de Red | Haga click en la imagen para ampliar |
