aaProbador de Continuidad 555 (CIR9658S)

Written by: Newton C. Braga
Category: Banco de circuitos



Este circuito fue encontrado en una revista de 1979, pero aún puede ser montado con facilidad, pues todos los componentes todavía son comunes. El consumo es bajo posibilitando la utilización de la batería como fuente. El circuito proporciona una indicación auditiva de la continuidad y el sonido será tanto más agudo cuanto menor sea la resistencia del circuito en prueba. La alimentación se puede realizar con tensiones de 5 a 12 V.



Probador de Continuidad 555

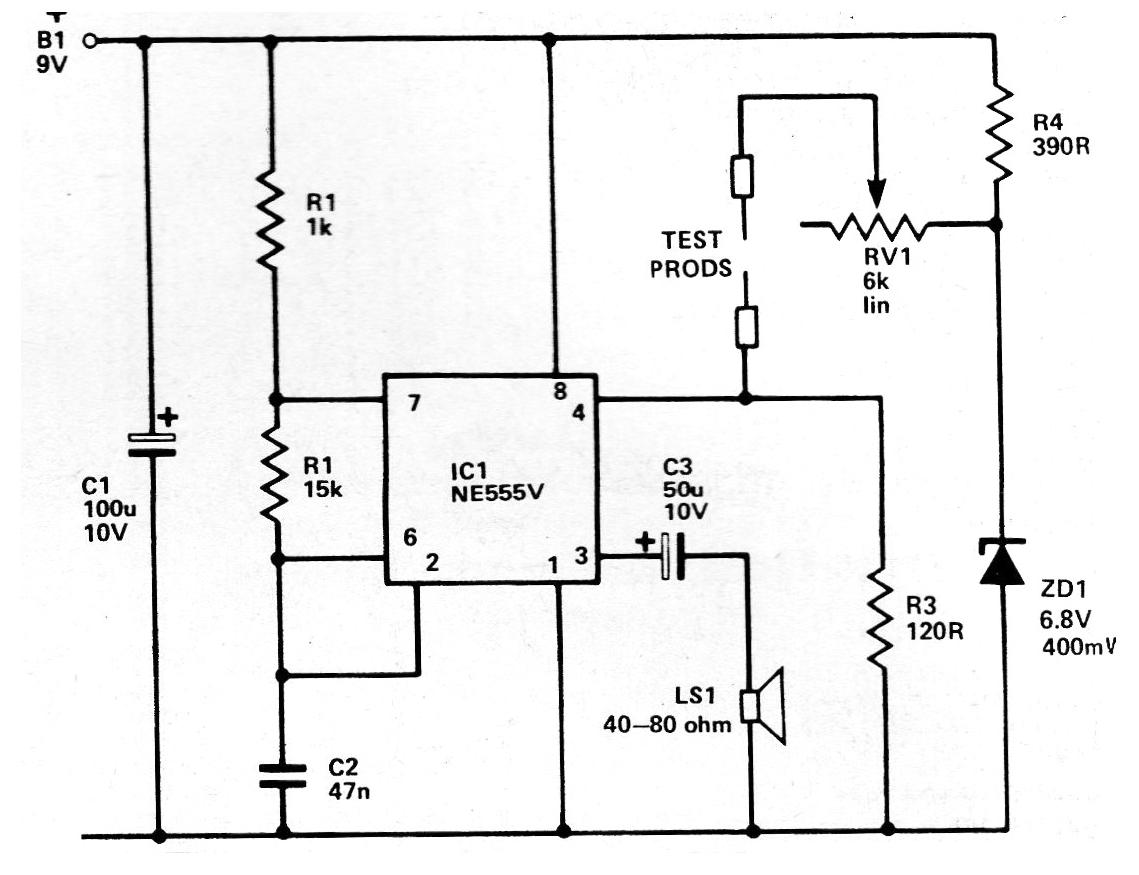

Probador de Continuidad 555 | Haga click en la imagen para ampliar |
