Prueba de control remoto (CIR9189S)

Written by: Newton C. Braga
Category: Banco de circuitos

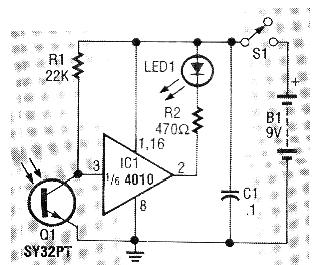

Este circuito salió en la revista estadounidense Electronics Now, en una edición de 1993. La revista ya no existe, pero el circuito puede ser montado con facilidad, ya que cualquier Foto-transistor puede ser usado. El LED se enciende cuando acercamos y accionamos cualquier tecla de un control remoto de infrarrojos común.
