Base de Tiempo de 200 kHz (CIR9334S)

Written by: Newton C. Braga
Category: Banco de circuitos

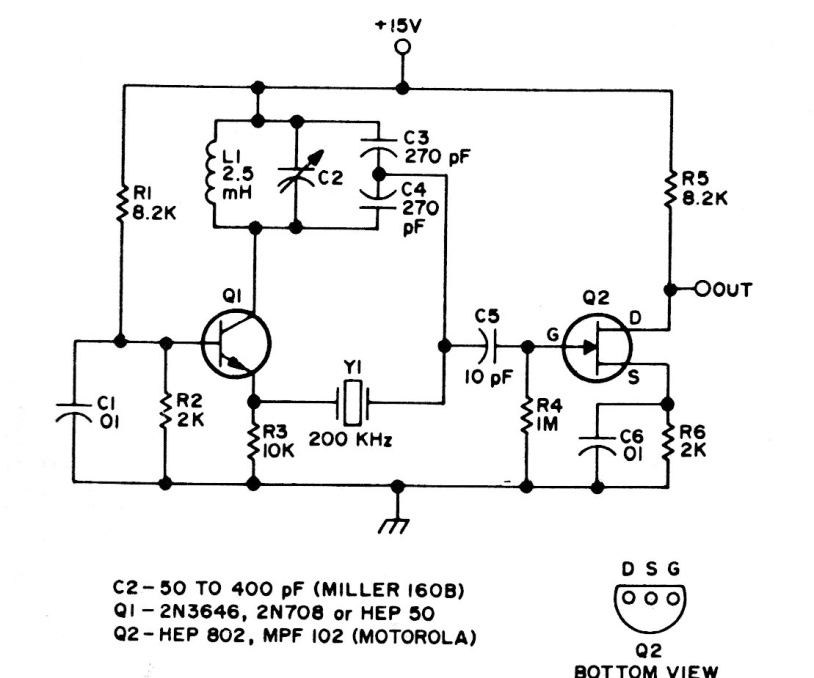

    Este circuito es de una documentación antigua, pero puede ser implementado con transistores modernos como el 2N2222 para el bipolar y BF124 para el FET. El cristal determina la frecuencia de funcionamiento.




| Haga click en la imagen para ampliar |
