Seguidor de Tensión (CIR9354S)

Written by: Newton C. Braga
Category: Banco de circuitos

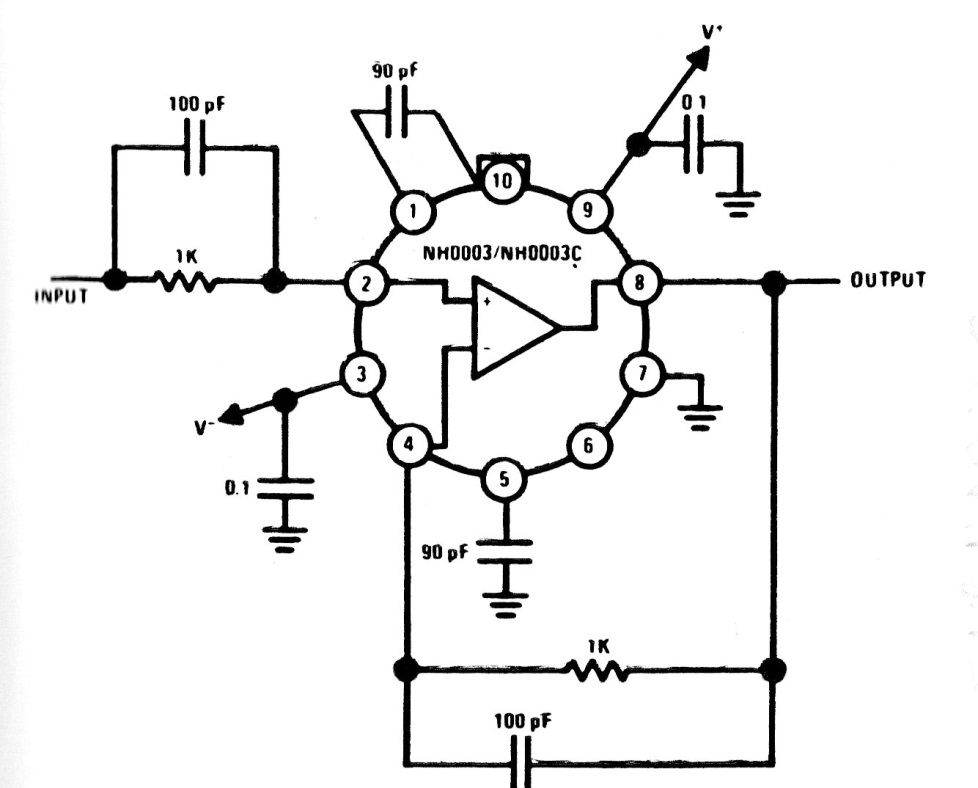

     Este seguidor de tensión o amplificador con ganancia unitaria utiliza un operacional poco común en nuestros días. El circuito se puede implementar para utilizar operacionales modernos. La fuente debe ser simétrica.
