Ignición por descarga capacitiva (CIR8763S)

Written by: Newton C. Braga
Category: Banco de circuitos

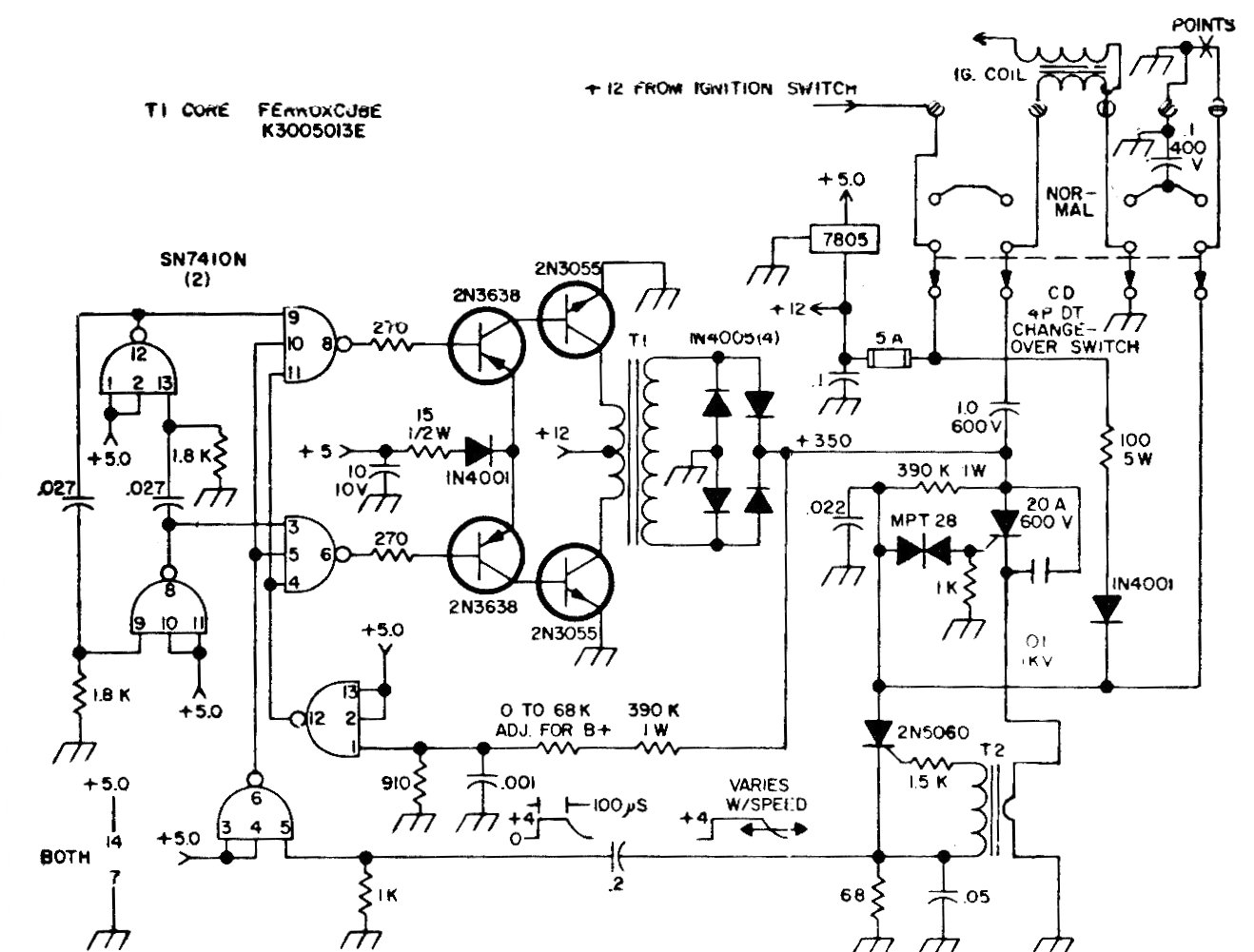

     Este circuito fue encontrado en una documentación americana de 1975. Los componentes de la época ya no se pueden encontrar fácilmente, pero pueden ser probados equivalentes. Los componentes inductivos también son críticos en este circuito.




| Haga click en la imagen para ampliar |
