Convertidor Tensión en Corriente (CIR7912S)

Written by: Newton C. Braga
Category: Banco de circuitos

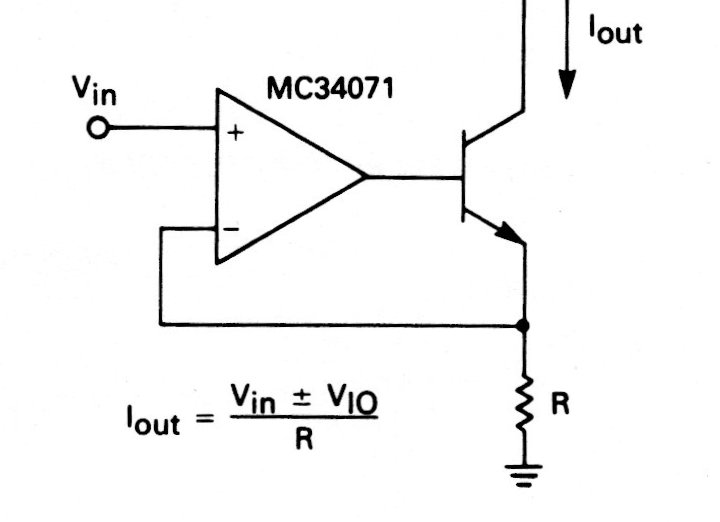

     Este circuito es del manual del componente, amplificador operacional MC34071 de Motorola de los años 80. El transistor debe ser elegido de acuerdo con la intensidad de la corriente deseada.




| Haga click en la imagen para ampliar |
