Amplificador Compuesto de Alta Velocidad (CIR7993S)

Written by: Newton C. Braga
Category: Banco de circuitos

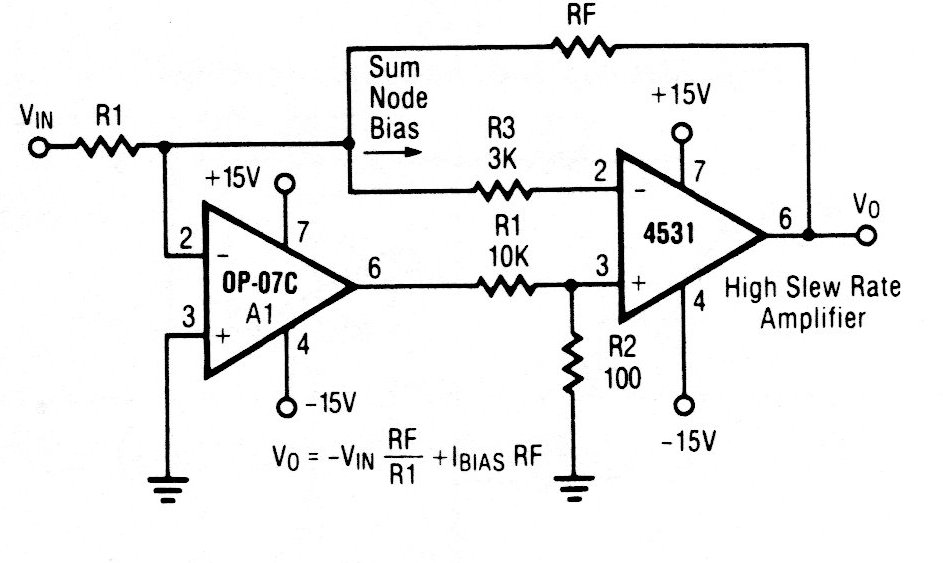

    El operacional tomado como ejemplo es poco común actualmente, pero la configuración puede ser elaborada con tipos más modernos. La fórmula junto al diagrama proporciona las características del circuito en función de los componentes.




| Haga click en la imagen para ampliar |
