Función No E o NAND con Relé (CIR8048S)

Written by: Newton C. Braga
Category: Banco de circuitos

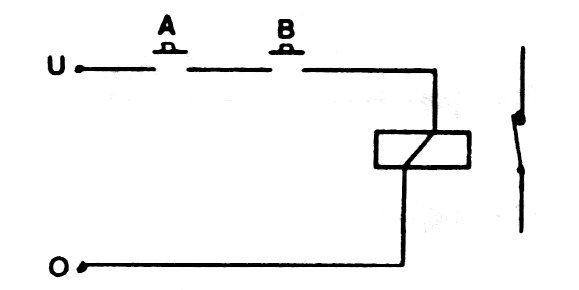

    Esta función se implementa utilizando los contactos C y NF del relé. En la figura tenemos el modo de conectar los sensores o interruptores y abajo la tabla verdad.

A B S

0 0 1

0 1 1

1 0 1

1 1 0
