Filtro Activo Pasa Bajo (CIR8075S)

Written by: Newton C. Braga
Category: Banco de circuitos

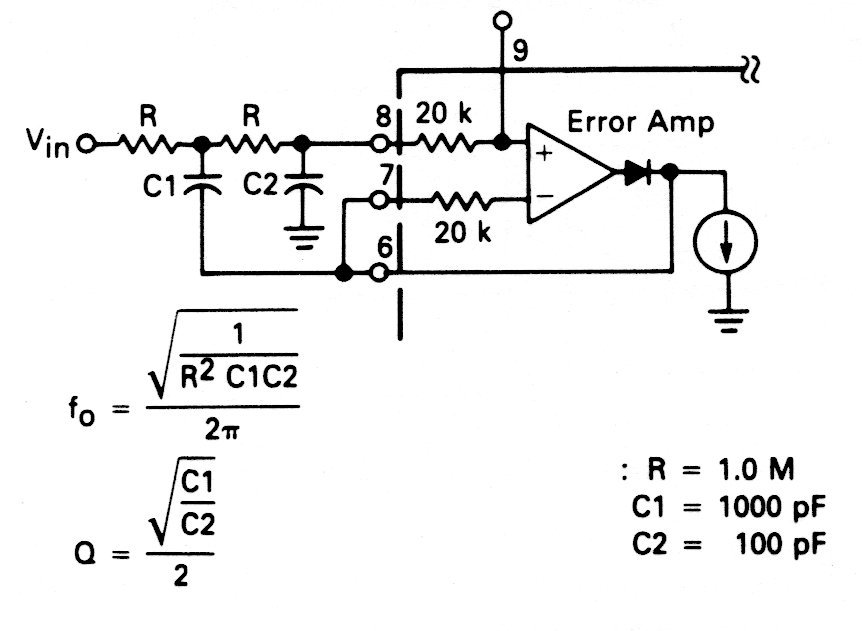

    Este filtro de segundo orden se encontró en una documentación de los años 90. Puede ser implementado con operacionales comunes y la frecuencia se calcula en función de los componentes por las fórmulas junto al diagrama.
