Circuito de defasaje con FET (CIR7533S)

Written by: Newton C. Braga
Category: Banco de circuitos

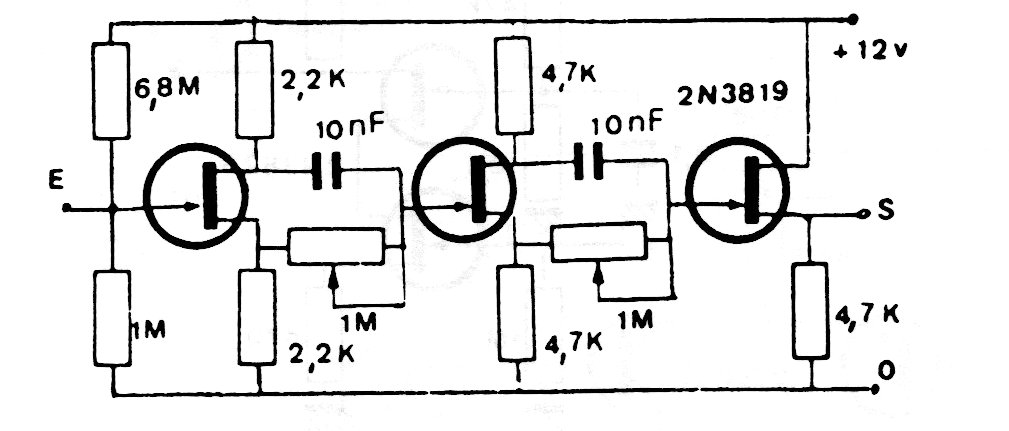

    La finalidad de este circuito es cambiar la fase de una señal de pequeña intensidad aplicada a su entrada. El circuito puede utilizar prácticamente cualquier JFET como el BF245 y cambia la fase de 0 a 360 grados.




| Haga click en la imagen para ampliar |
