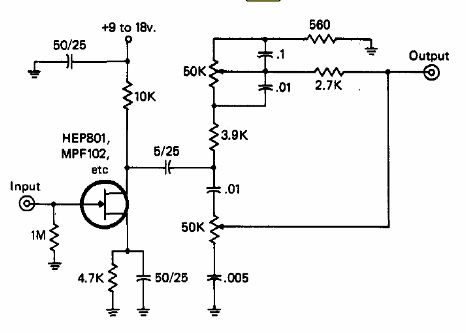

Preamplificador con FET y con Control de Tono (CIR7349S)

Written by: Newton C. Braga
Category: Banco de circuitos



    Este circuito se obtuvo en una publicación antigua. El FET también puede ser el BF245. Los potenciómetros pueden ser de 47k que son valores estandarizados actuales. Los cables de entrada y salida de audio deben ser blindados.
