Foto Astable CMOS (CIR7246S)

Written by: Newton C. Braga
Category: Banco de circuitos

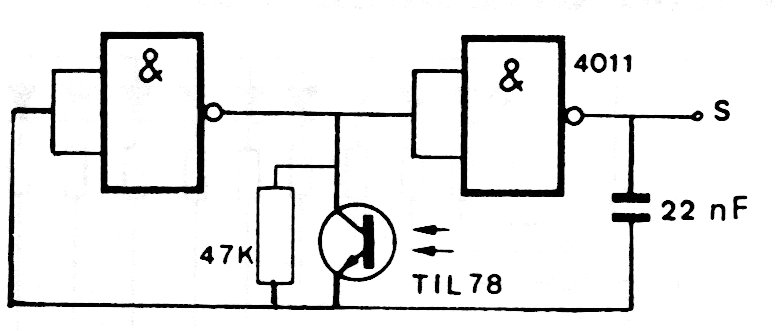

     El circuito integrado utilizado en esta aplicación puede ser el 4011 o 4001. El foto-transistor puede ser de cualquier tipo y el rango de frecuencias es determinado por el capacitor. La alimentación puede oscilar entre 3 y 12 V.
