Micro amplificador (CIR3663S)

Written by: Newton C. Braga
Category: Banco de circuitos

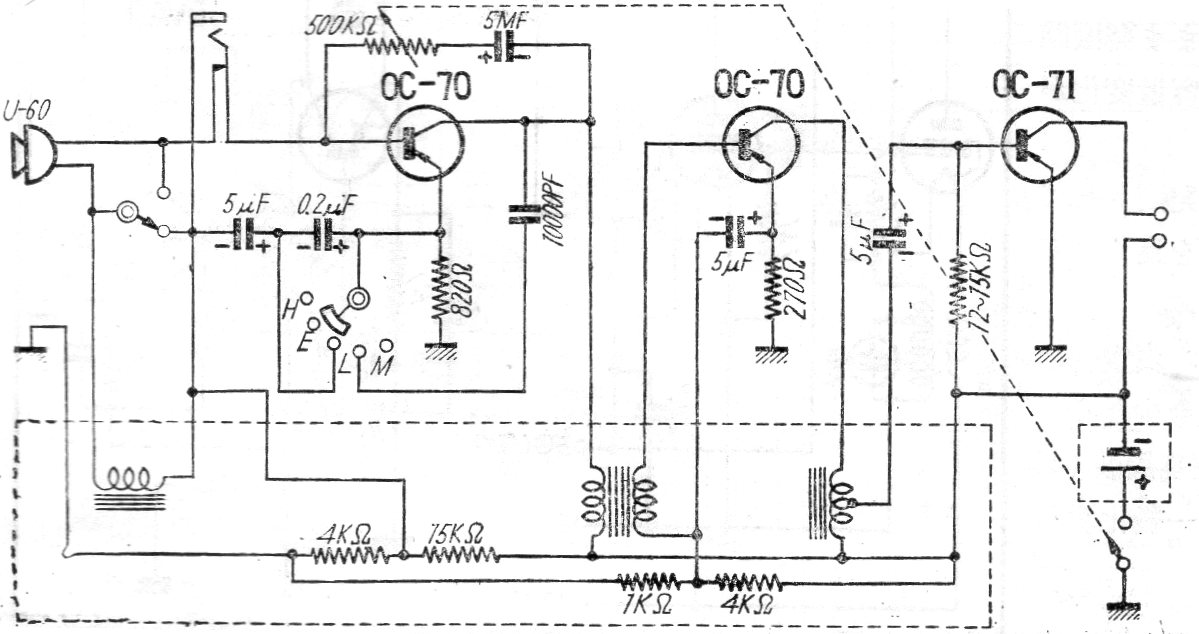

Este pequeño amplificador con un micrófono de baja impedancia que se puede utilizar como audífono fue encontrado en una publicación japonesa de la década de 1960. El circuito funciona con pilas y los transistores son tipos de germanio de la época.
