Timer con el TAA865 (CIR6377S)

Written by: Newton C. Braga
Category: Banco de circuitos

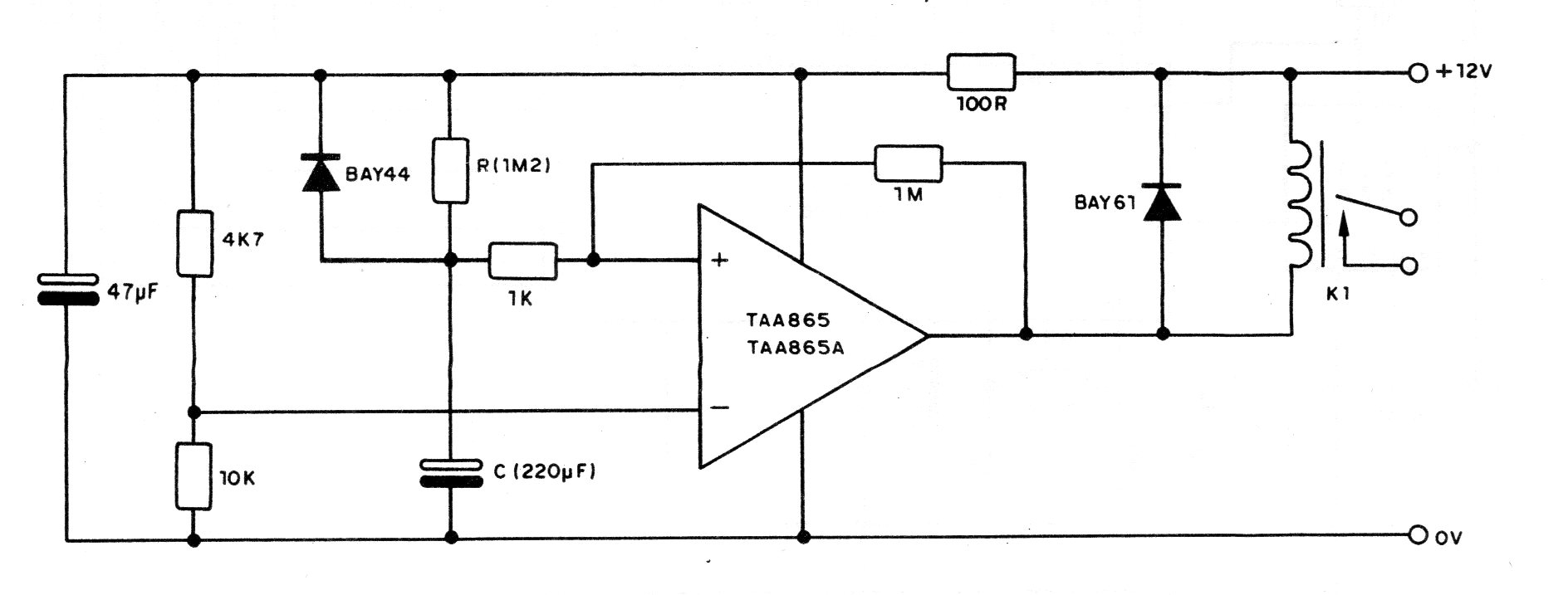

     El circuito integrado TAA865 usado en este proyecto de 1986 no es más común en nuestros días. El circuito es de una documentación de la época y el tiempo es dado por RC que tiene indicados los valores máximos. Se puede utilizar un pote para R.
