Reversión automática (CIR6237S)

Written by: Newton C. Braga
Category: Banco de circuitos



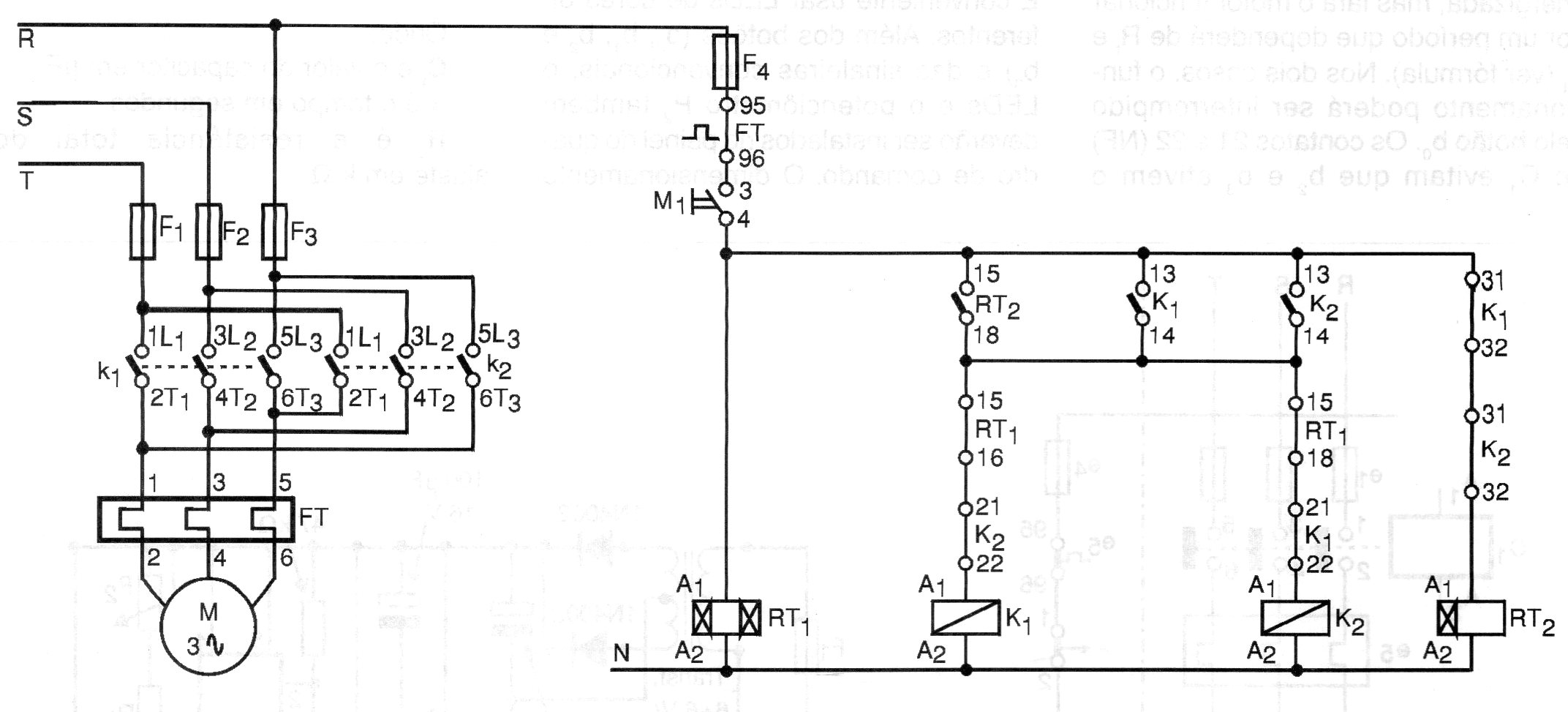

     Este circuito utiliza contactores y temporizadores para revertir un motor trifásico. El circuito se encontró en una documentación de 2000. TCS es un temporizador cíclico y TET un temporizador.
