Etapa Clase B con Transistores de germanio 500 mW (CIR2568S)

Written by: Newton C. Braga
Category: Banco de circuitos

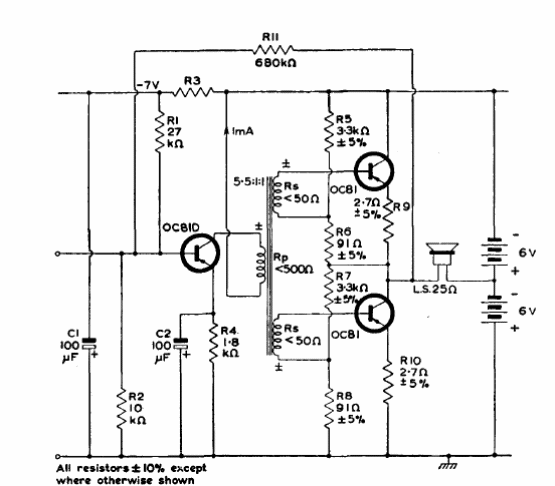

    Este pequeño paso de salida de audio se encontró en el manual de referencia de transistores de la Mullard de 1960. El circuito proporciona 500 mW de salida con una fuente simétrica de 6 V.
